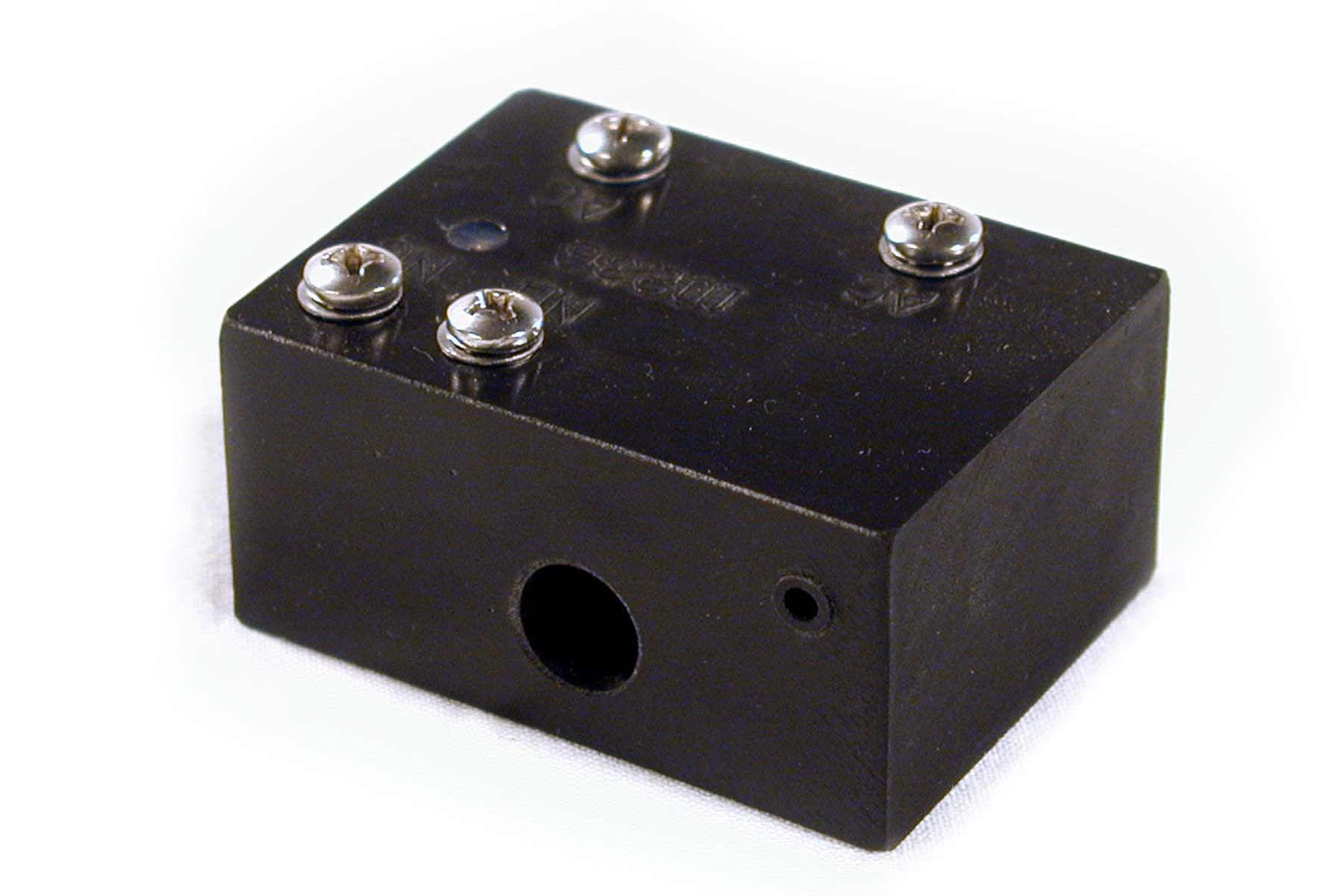

 Model 10236 is a programmable current sensor. The 10236 has an internal relay with contact form 1C. The common of the relay is connected to one side of the 120VAC line. The current trip point is continuously adjustable. The trip point can be set with an incandescent flashlight. There is an LED to indicate successful programming. |
|
|
- Programmable
- Trip Current Set with Incandescent Flashlight
- Relay Common Connected to Supply
|
|
|
| Operating Voltage |
|
| Maximum Output Current |
10A |
| Sensing Range |
|
| Number of Phases |
1 |
| Maximum Wire Size |
|
| Trip Point |
Adjustable |
| Features |
-Programmable
-Trip Set with Flashlight
-Relay Common Connected to Supply |
|
|
|
|
|
| 1 |
$
|
28.00 |
| 5 |
$
|
25.00 |
| 10 |
$
|
23.00 |
| 50 |
$
|
20.00 |
| 100 |
$
|
19.00 |
|
|
|
