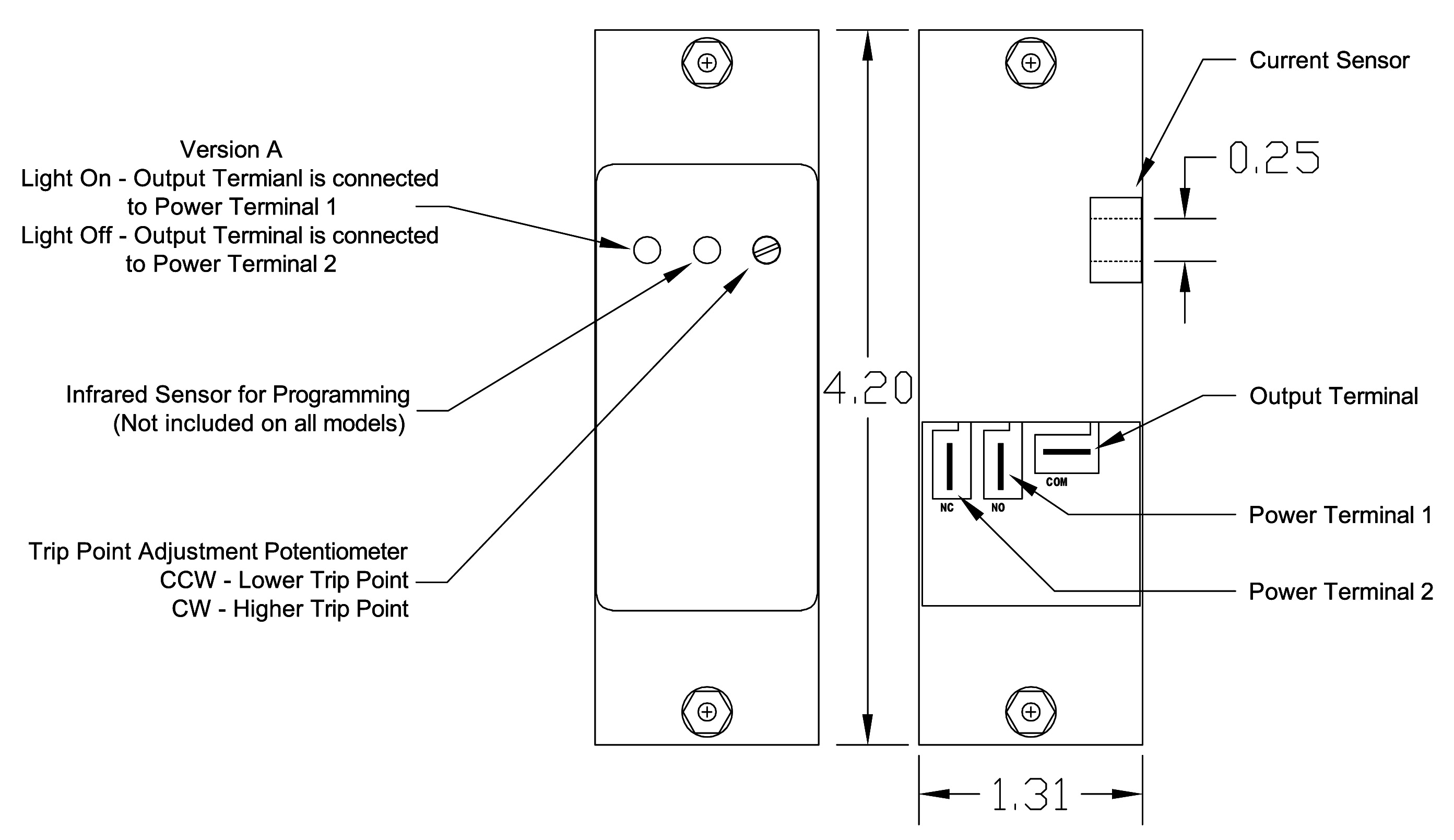

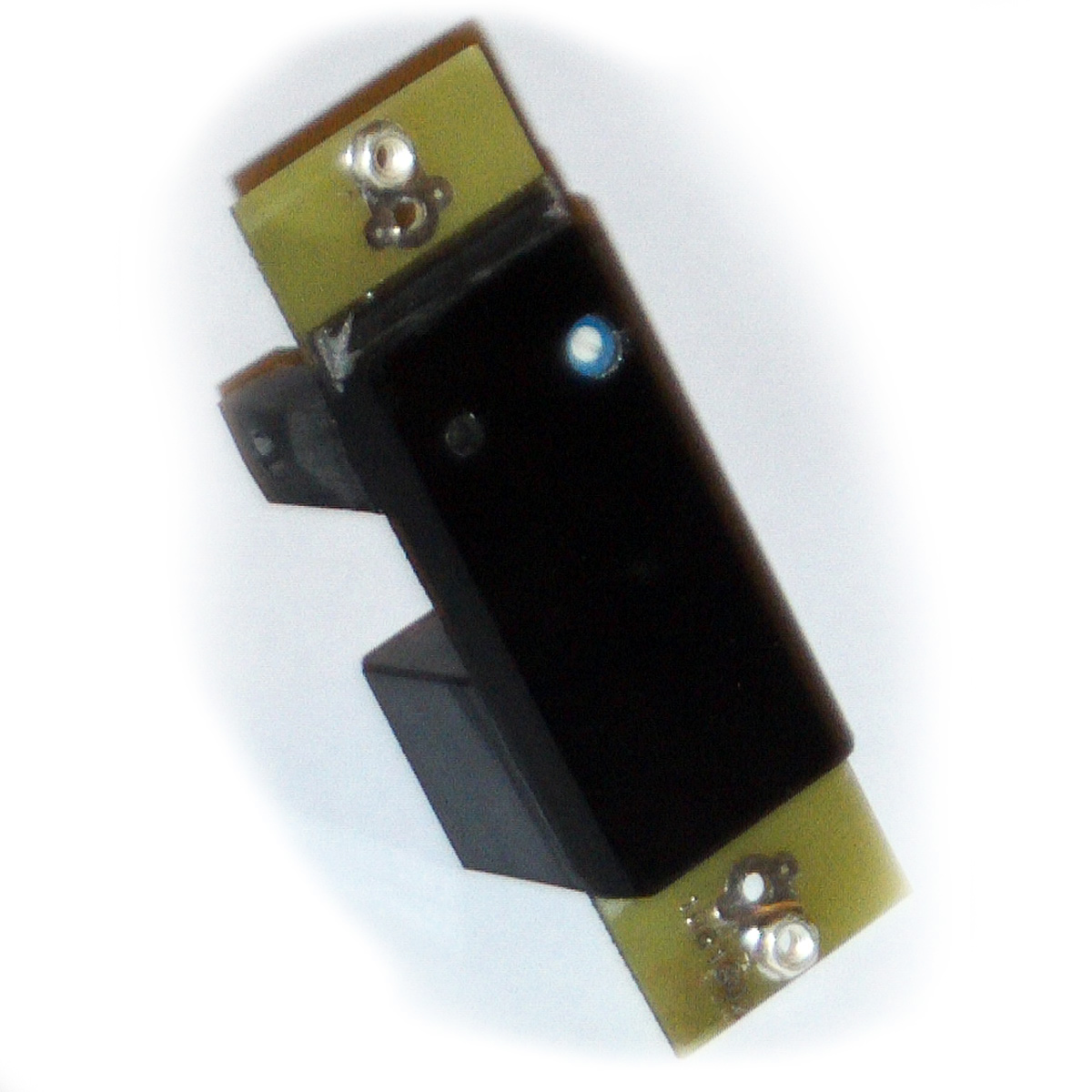

 Model 10618 is a current switch that is designed to fit in a “Decora” electrical enclosure. This device requires a deep electrical box. The trip point is adjustable with a single turn potentiometer. Different models allow different sensing ranges from 0.5A to 20A. The “on to off” and “off to on” times are less than 100ms. The trip point of the switch is continuously adjustable. |
|
|
- Sensor is encapsulated to prevent environmental and physical damage
- Adjustment range .5 - 20 A
- Easy to install and use
- Rugged Industrial Design
|
|
|
| Operating Voltage |
|
| Maximum Output Current |
20A |
| Sensing Range |
|
| Number of Phases |
1 |
| Maximum Wire Size |
|
| Trip Point |
Adjustable |
| Features |
Fits in "Decora" Style Electrical Boxes |
|
|
|
|
|
| 1 |
$
|
38.00 |
| 5 |
$
|
33.00 |
| 10 |
$
|
31.00 |
| 50 |
$
|
27.00 |
| 100 |
$
|
26.00 |
|
|
|
