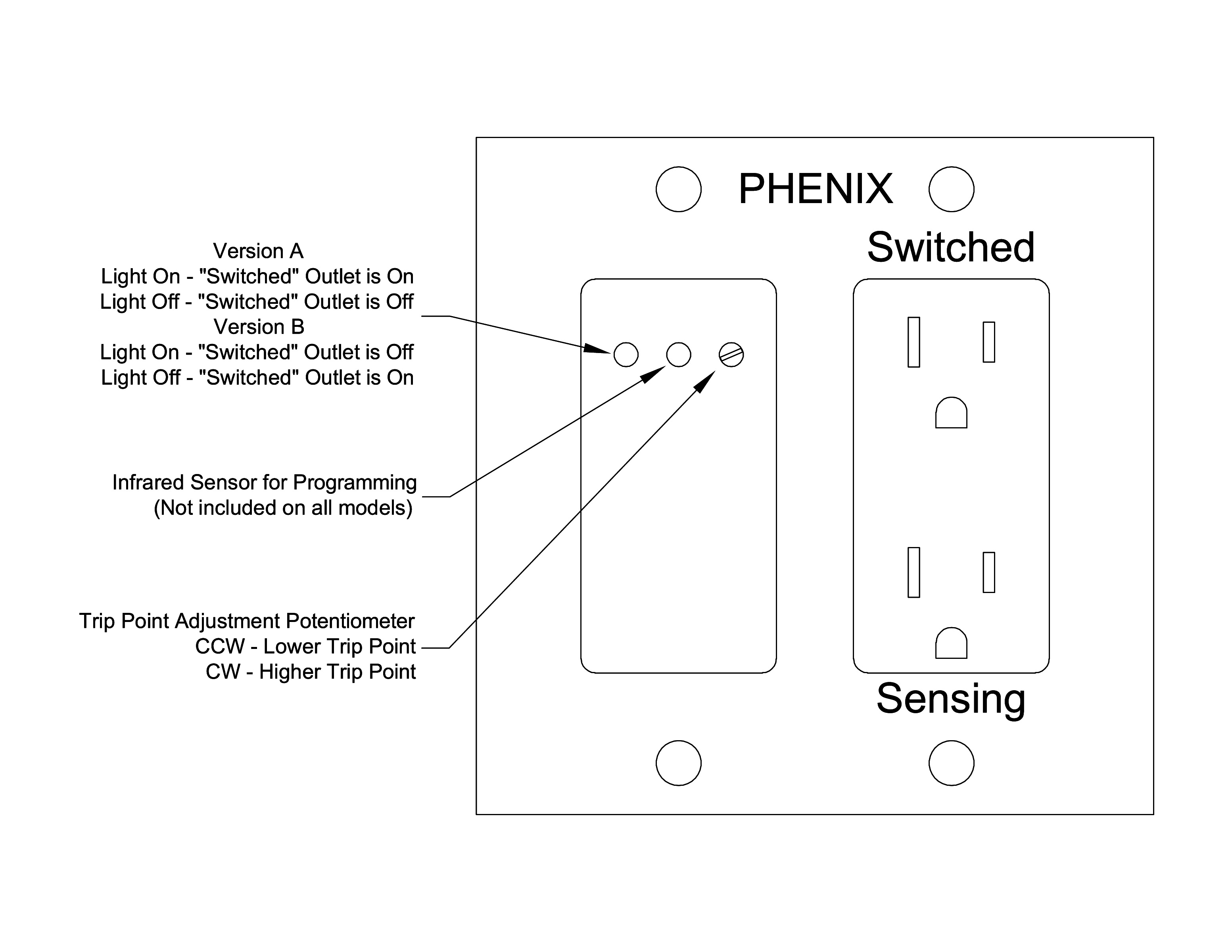

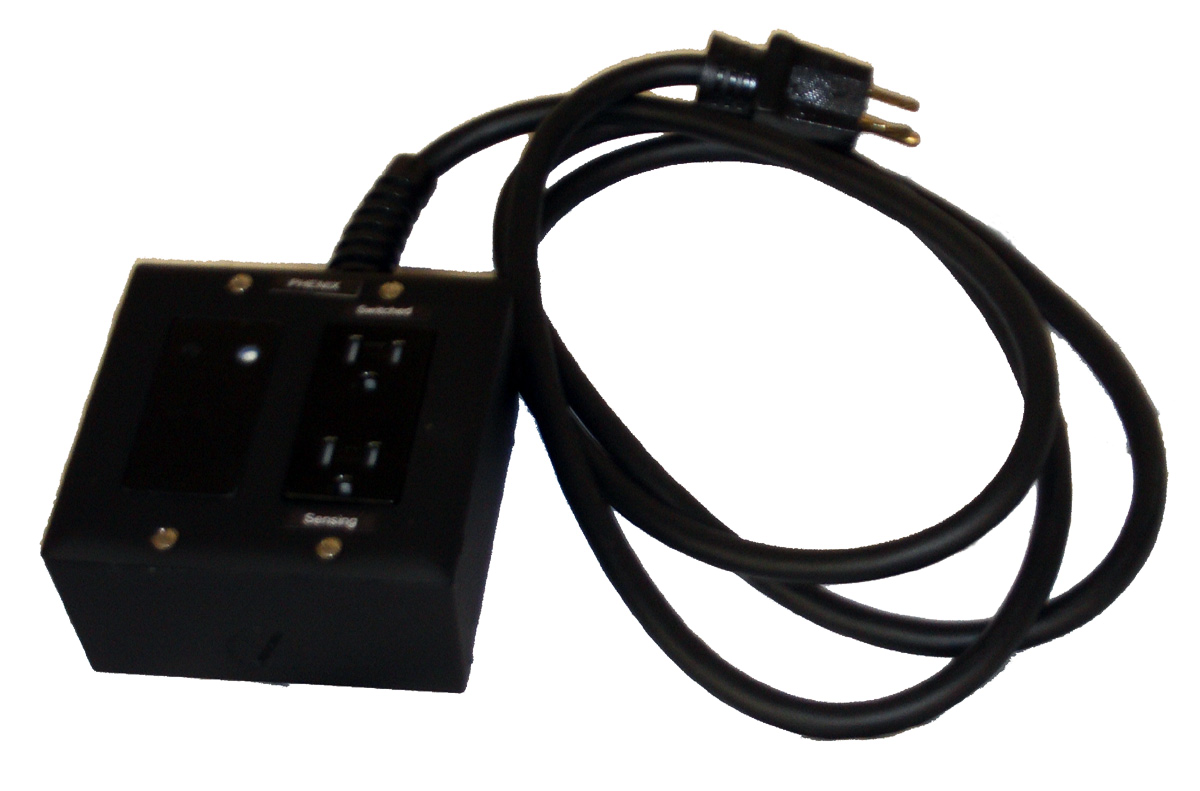

 Model 10623 is an electrical box that can monitor the current on one outlet and switch another outlet. The trip point is adjustable with a single turn potentiometer. It has a 6 foot cord. Different models allow different sensing ranges from 0.5A to 20A. The “on to off” and “off to on” times are less than 100ms. The trip point of the switch is continuously adjustable. |
|
|
- Sensor is encapsulated to prevent environmental and physical damage
- Adjustment range .5 - 20 A
- Easy to install and use.
- Standard 120VAC electrical outlets
- Rugged Industrial Design
|
|
|
| Operating Voltage |
|
| Maximum Output Current |
20A |
| Sensing Range |
|
| Number of Phases |
1 |
| Trip Point |
Adjustable |
| Features |
Standard 120VAC Outlets and Plugs |
|
|
|
|
|
| 1 |
$
|
98.00 |
| 5 |
$
|
85.00 |
| 10 |
$
|
80.00 |
| 50 |
$
|
70.00 |
| 100 |
$
|
65.00 |
|
|
|
