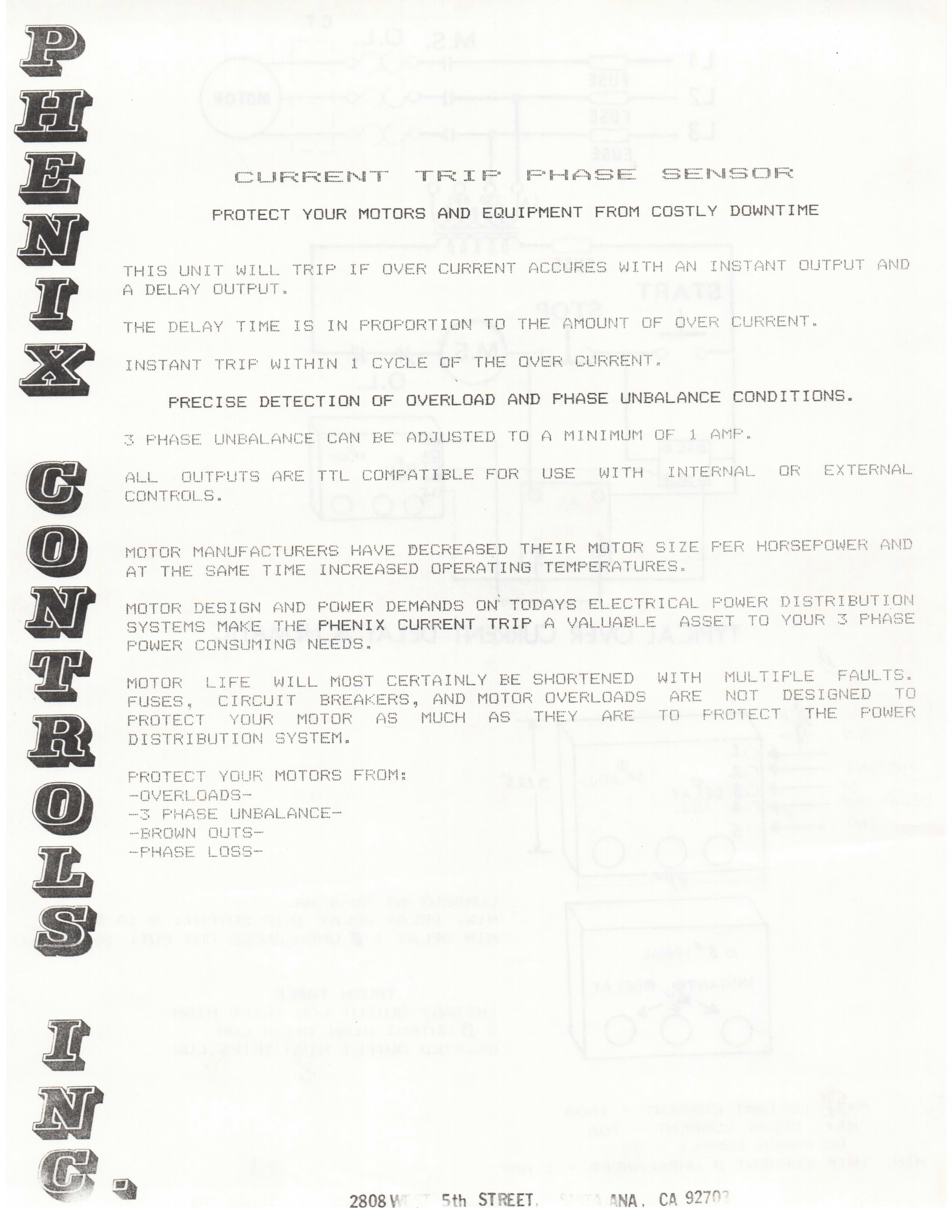

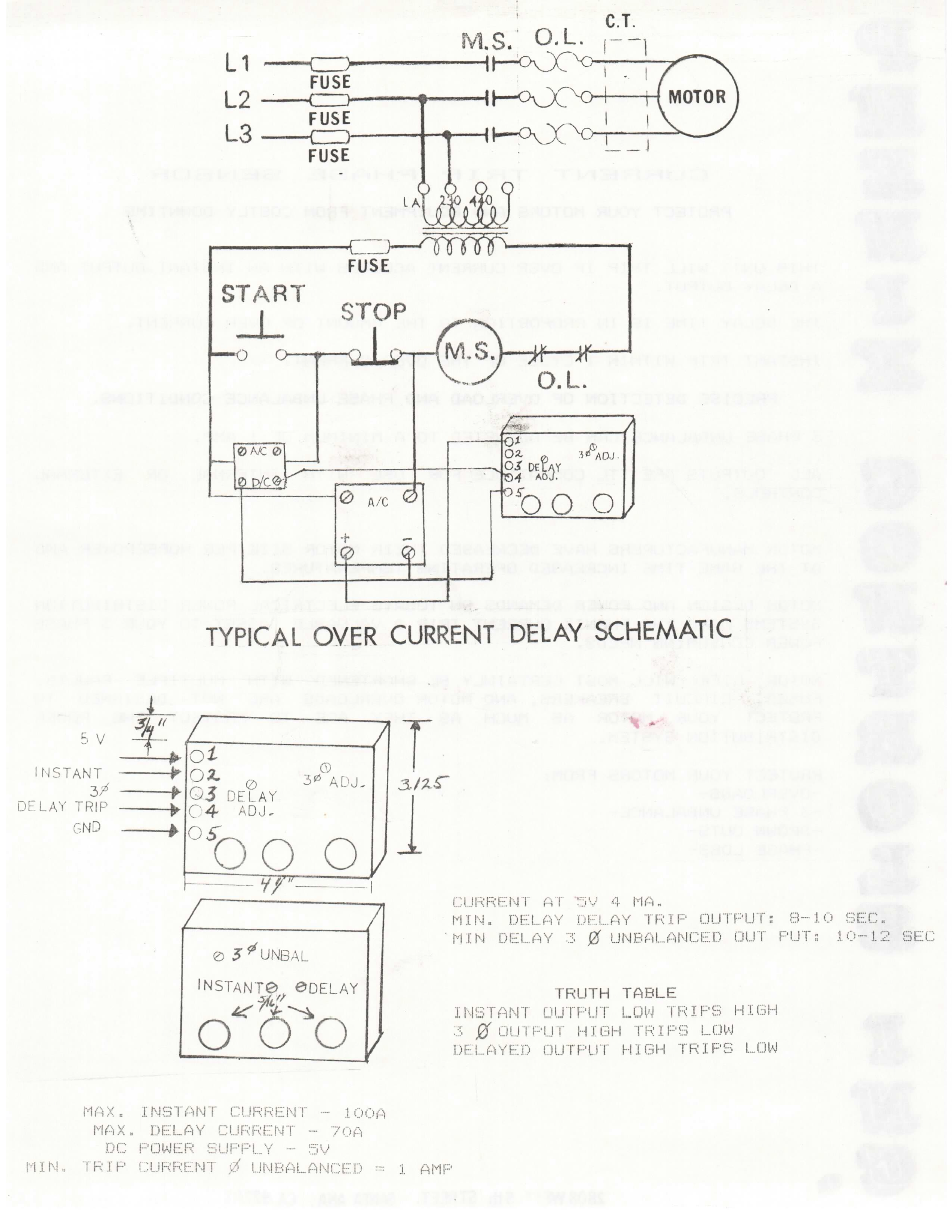

 Model 4174 is a 100 A, 3 phase current sensor with adjustable settings for instantaneous trip, unbalanced phase detection, and delayed trip. The trip points are continuously adjustable. The Instantaneous output switches from 0 to Vcc on trip. The Delayed and unbalanced Outputs switch from Vcc to 0 on trip. |
|
|
| Operating Voltage |
|
| Maximum Output Current |
20mA |
| Sensing Range |
|
| Number of Phases |
3 |
| Maximum Wire Size |
|
| Trip Point |
Adjustable |
| Features |
Instantaneous, Delayed, and Unbalanced Trip |
|
|
|
|
|
| 1 |
$
|
185.00 |
| 5 |
$
|
161.00 |
| 10 |
$
|
151.00 |
| 50 |
$
|
131.00 |
| 100 |
$
|
123.00 |
|
|
|
