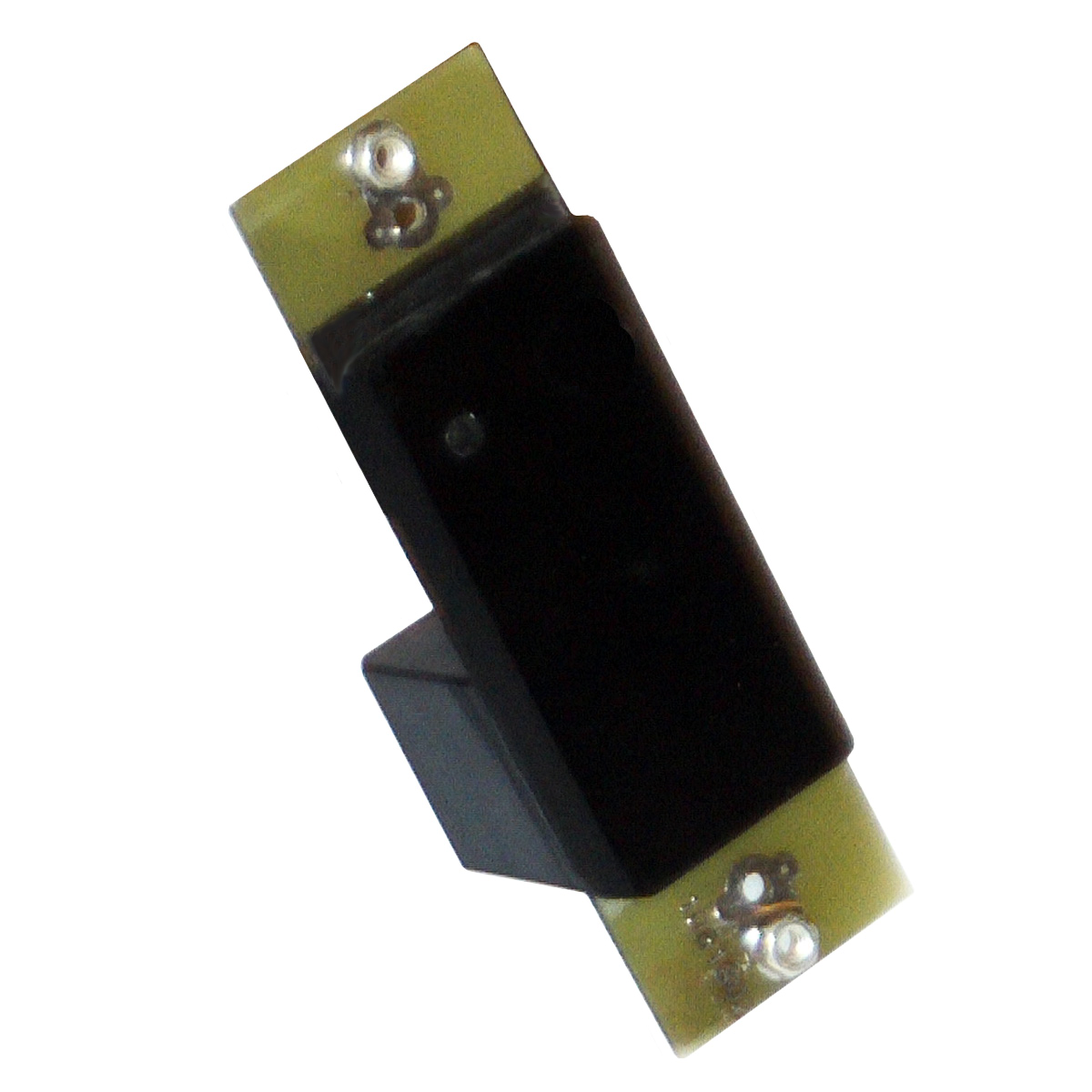

 Model 10638 is a programmable interval timer with a weekly clock that is designed to fit in a "Decora style" electrical enclosure. This device requires a deep electrical box. The 10638 Timer can store up to 30 intervals. Interval sequences can be programmed to start on power, daily, or weekly. The time is programmed through an isolated infrared input.
Intervals and input settings are defined using Phenix Programmer Software which is available online for FREE. Timer settings are then read from the computer screen using an infrared remote programmer, model 9211, or through the USB interface, model 9245. The interval program is then transmitted from the remote to the infrared input on the timer.
|
|
|
- Sensor is encapsulated to prevent environmental and physical damage
- Easy to install and use
- Rugged Industrial Design
- 30A current capacity
- Stores up to 30 on/off intervals
- Extended programing capability for sequencer
- Programmable power-up state
- Weekly Clock
- Activate on/off sequences on weekly moments
|
|
|
| Operating Voltage |
|
| Output |
|
| Time |
|
| Features |
|
|
|
|
|
|
| 1 |
$
|
30.00 |
| 5 |
$
|
26.00 |
| 10 |
$
|
25.00 |
| 50 |
$
|
22.00 |
| 100 |
$
|
20.00 |
|
|
|
