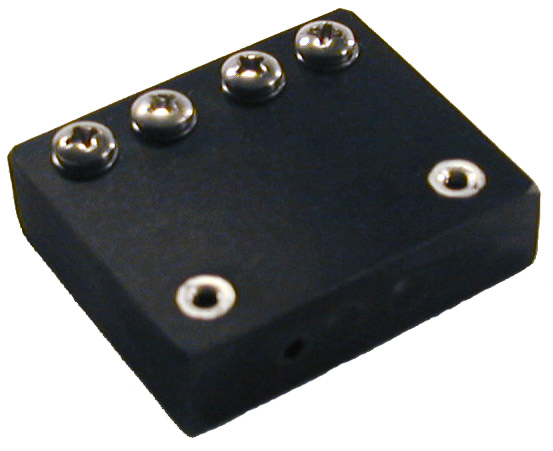

 Model 9233 is a 5-24 VDC low cost g-force trip sensor. When a programmable g-force threshold is reached, a photo isolated output is pulled down(to common).

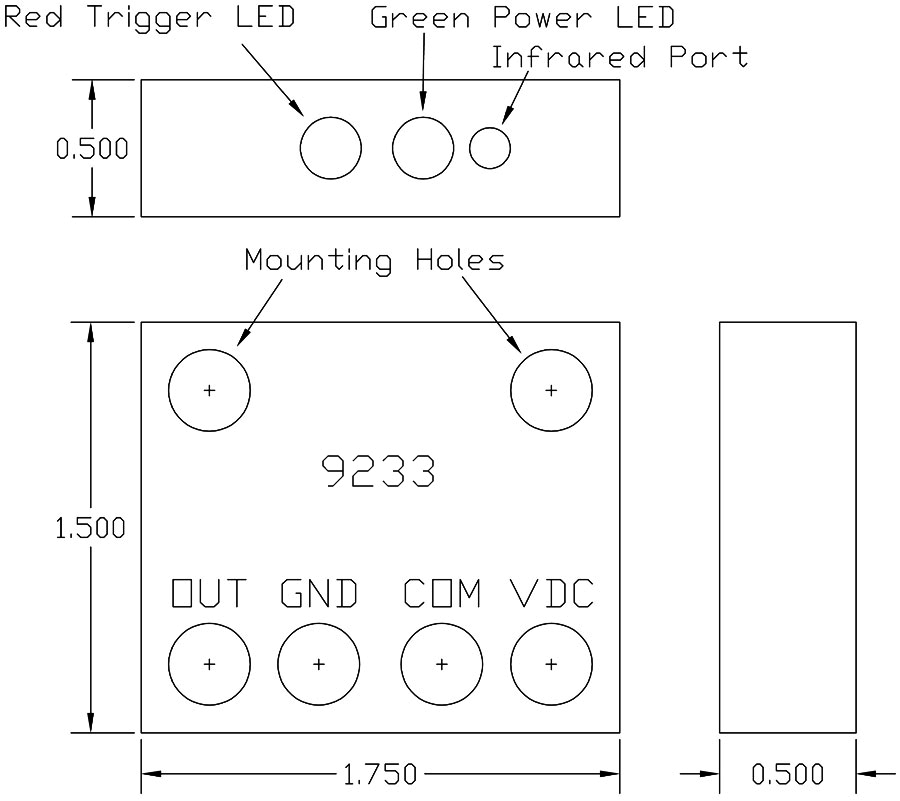

Acceleration is measured on two axis and the magnitude of the acceleration is compared to the programmable threshold. The XY axis sensing plane is perpendicular to the top side (terminal side) of the device.
The threshold and axis plane are both set using the Phenix Programmer Software, which is available online for FREE. The software sets the threshold and calibrates the sensing plane. The settings are then transferred from the computer to device using an infrared remote programer, model 9245. The 9233 receives the settings from the remote through the infrared input located on along the side of the device. |
|
|
- Programmable threshold and sensitivity
- Two axis sensing
- Senses up to 12g of acceleration
- Power and Trigger LEDs
- Infrared input
- Photo isolated output
|
|
|
|
|
| 1 |
$
|
39.00 |
| 5 |
$
|
34.00 |
| 10 |
$
|
32.00 |
| 50 |
$
|
28.00 |
| 100 |
$
|
26.00 |
|
|
|
