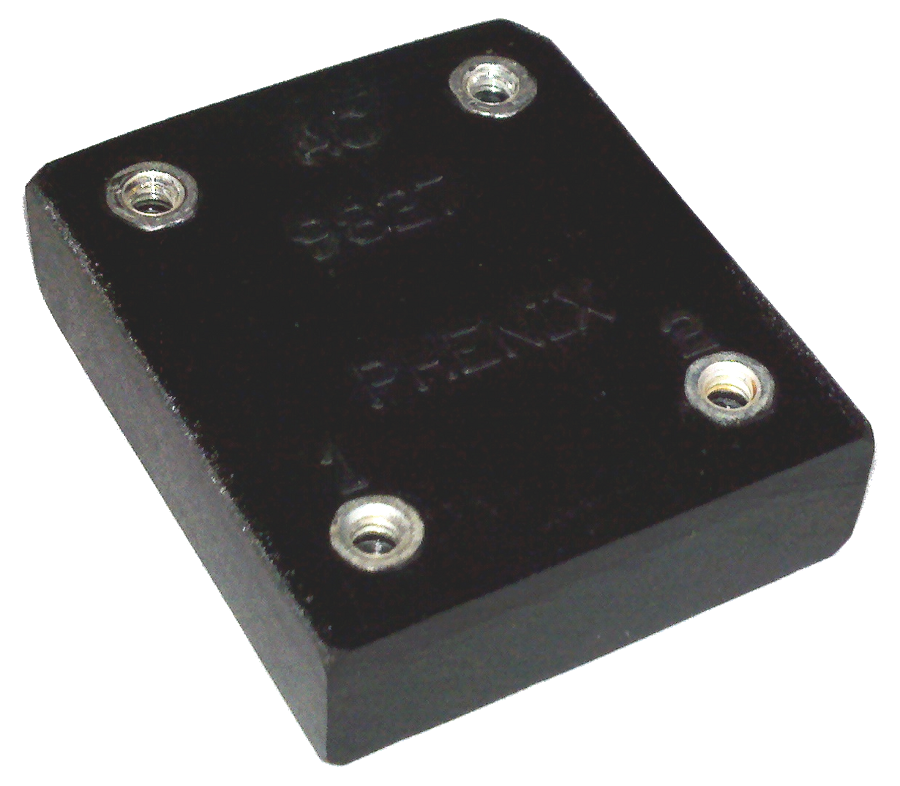

| Model 9827 is a solid state relay, epoxy encapsulated, with no moving parts. The relay is available with zero crossing, which reduces high voltage transients. Inputs are fully protected from polarity reversal and have a 2500 volt isolation from input to output. Standard packaging features printed circuit board mounting. The Relay is also available with heat sink mounting and enhanced features. Model 9827 is available in 3-15 amp versions, with Form A outputs (SPST). Other designs are available upon request. |
|
|
| Operating Voltage |
120 VAC |
| Maximum Load |
3 A |
| Control Voltage |
5VDC |
| Feature |
Same as 7227 except has higher Control Current |
|
|
|
|
|
| 1 |
$
|
38.00 |
| 5 |
$
|
33.00 |
| 10 |
$
|
31.00 |
| 50 |
$
|
27.00 |
| 100 |
$
|
26.00 |
|
|
|
